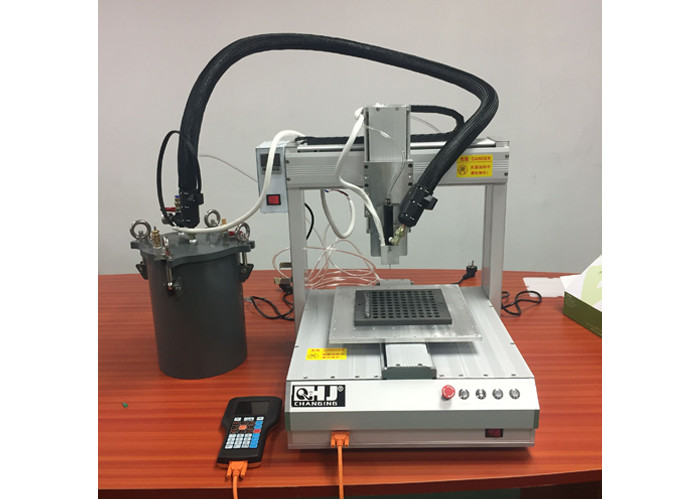

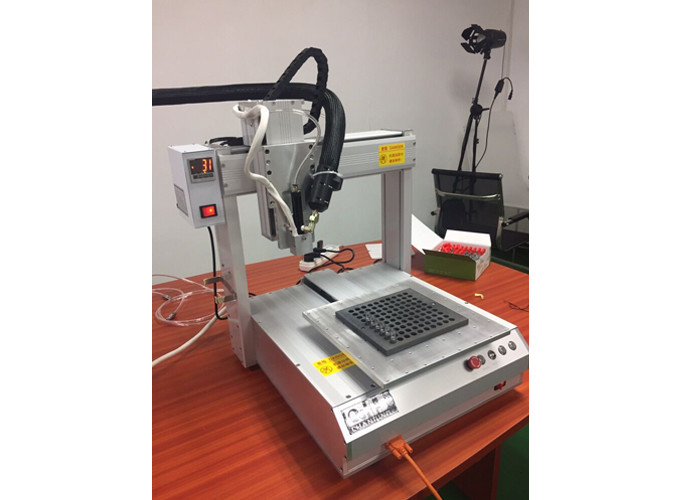

3 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm

1sets
MOQ
10000sets/week
Price
3 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm
Features Gallery Product Description Request A Quote
Features
Specifications
Motor System: Stepper Motor
JIG/TRAY: 100pcs/tray
Driven Type: Electric
Certification: CE,Rohs
Highlight:

cartridge filling equipment

,

automatic filling machine

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: Other
Certification: CE,Rohs
Model Number: M1 filling Machine
Payment & Shipping Terms
Packaging Details: Gift box
Delivery Time: 1-2 working days for sample, 3-7 working days for bulk, 8-12 working days for OEM
Payment Terms: Paypal, T/T, Western Union
Product Description

M1 Filling Machine Auto Essential Oil Vaporizer Cartridge CBD Hemp Oil Filling



Features

1. Teach pendent in English interface, easy operation.
2. Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
3. The software has array, horizontal move and rotate operation function.
4. Size, speed spread, dispensing time, time of halting dispensing can be arranged as per needs. With this method, glue exudation is quite stable with no glue leaking and dripping.
5. According to the production process, the working platform can be installed for positioning PIN, sole-plate heating and temperature regulating device.



Specification

Model Automatic filling machine
Feature Heating funtion is available (optional)
Driven Type Electric
Motor system Stepper Motor
Power Supply Full voltage AC110 ~ 240V 300W
Working Temperature 5 – 40 °C
Machine working presure 0.2 - 1.0 Pa
Working Range X/Y/Z(mm) X200*Y300*Z400mm
I/O signal port 12 inputs/outputs
Working Relative Humidity 20 – 90% no condensation
Control method PTP & CP
Filling Speed X & Y/Z (mm/sec): 0.1~800/ 500
Interpolation function 3 axes(suit for 3D requirement)
positioning accuracy 0.05mm
Repetitive positioning accuracy ±0.03mm
Size L550*W550*Z580mm
JIG/TRAY 100pcs/tray
Packaging Type Wooden Case package
Machine Structure Filling ,spout pressing ,outer cap capping
Throughput Can be adjusted manually
Application FOR cartridges/dropper bottles/disposable e cigarette/cartomizer







Product details



3 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm 03 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm 13 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm 23 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm 33 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm 4



Packing details

3 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm 53 Axes Cartridge Filling Equipment With Stepper Motor 200 * 300 * 400mm 6



Payment

Paypal, Western Union, T/T, Visa, Master Card



Delivery time

1-2 working days for sample order

3-7 working days for bulk order

8-12 working days for OEM order after sample confirmed



After-sales service

(1).Our defective rate is under 2%, if any defective item during warranty time, please send us photo or video, we will check and replace it for you in your next order.

(2).Keep tracking your package until you receive it.

(3) Contact person: Dora
