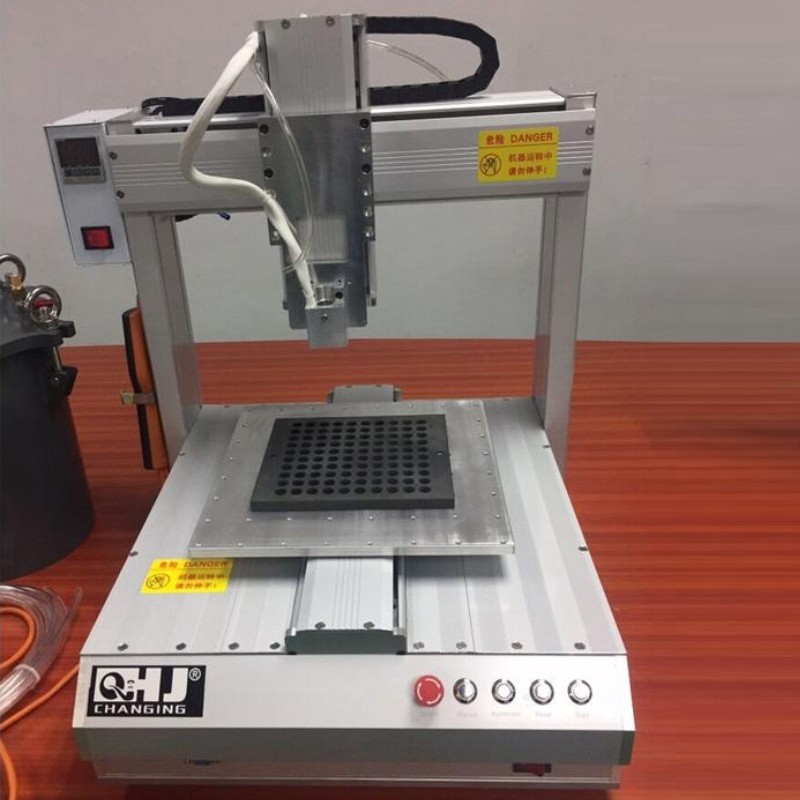

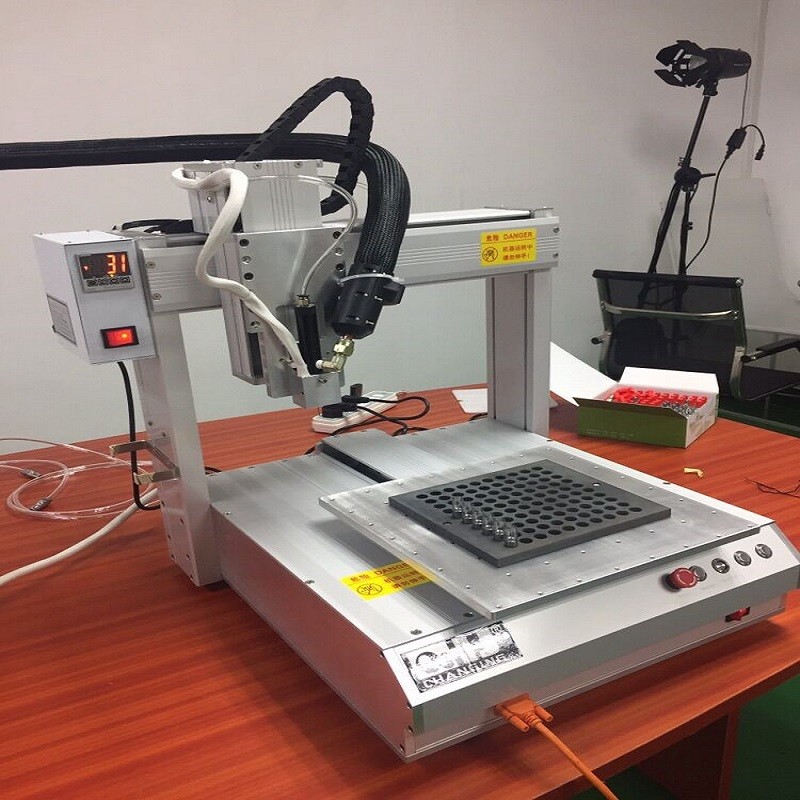

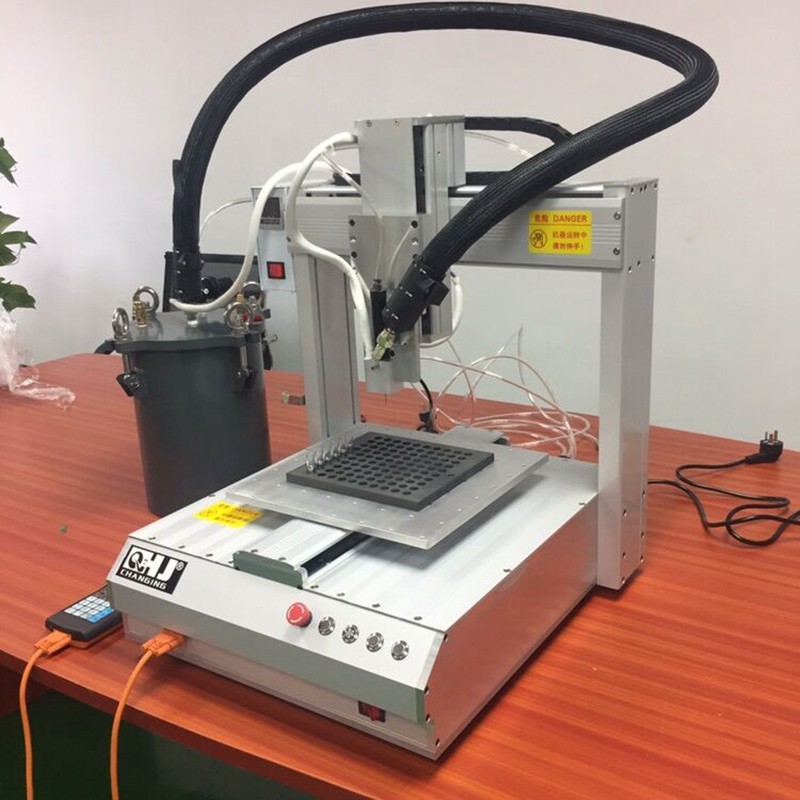

Automatic E cigarette co2 machine cbd oil filling disposable vapor vape pen cartridge filling machine
Features:
1.Teach pendent in English interface, easy operation.
2.Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
3.The software has array, horizontal move and rotate operation function.
4.Size, speed spread, dispensing time, time of halting dispensing can be arranged as per needs. With this method, glue exudation is quite stable with no glue leaking and dripping.
5.According to the production process, the working platform can be installed for positioning PIN, sole-plate heating and temperature regulating device.
Specifications:
| Model | Automatic filling machine |
| Feature | Heating funtion is available(optional) |
| Driven type | Electric |
| Motor system | Stepper Motor |
| Power supply | Full voltage AC110 ~ 240V 300W |
| Working temperature | 5 – 40 °C |
| Machine working presure | 0.2 - 1.0 Pa |
| Working range X/Y/Z(mm) | X200*Y300*Z400mm |
| I/O signal port | 12 inputs/outputs |
| Working relative humidity | 20 – 90% no condensation |
| Control method | PTP & CP |
| Filling speed | X & Y/Z (mm/sec): 0.1~800/ 500 |
| Interpolation function | 3 axes(suit for 3D requirement) |
| Positioning accuracy | 0.05mm |
| Repetitive positioning accuracy | ±0.03mm |
| Size | L550*W550*Z580mm |
| Jig/Tray | 100pcs/tray |
| Packaging type | Wooden case package |
| Machine structure | Filling ,spout pressing ,outer cap capping |
| Throughput | Can be adjusted manually |
| Application | For cartridges/Dropper bottles/Disposable vape pens/Pods |
Shipping&Payment:
Delivery time:
1-2 working days for sample order
3-7 working days for bulk order
8-12 working days for OEM order after sample confirmed
How to order:
(1).Please tell us the model name and quantity you need, then we will send you our best price.
(2).Please send us your shipping details if price is OK, then we will send you PI to confirm.
(3).You arrange payment and inform us, then we will arrange the order for you.
(4).We will offer you tracking no. after delivery and keep tracking your package until you receive it.
