Automatic Thick oil Filling Machine M1 Fit for 510 Cartridge Liberty V1 V5 V9 G2 CE3 Bottle Disposable ecig Filling Robert
Features:
1.Teach pendent in English interface, easy operation.
2.Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
3.The software has array, horizontal move and rotate operation function.
4.Size, speed spread, dispensing time, time of halting dispensing can be arranged as per needs. With this method, glue exudation is quite stable with no glue leaking and dripping.
5.According to the production process, the working platform can be installed for positioning PIN, sole-plate heating and temperature regulating device.
Specifications:
| Model | Automatic filling machine |
| Feature | Heating funtion is available(optional) |
| Driven type | Electric |
| Motor system | Stepper Motor |
| Power supply | Full voltage AC110 ~ 240V 300W |
| Working temperature | 5 – 40 °C |
| Machine working presure | 0.2 - 1.0 Pa |
| Working range X/Y/Z(mm) | X200*Y300*Z400mm |
| I/O signal port | 12 inputs/outputs |
| Working relative humidity | 20 – 90% no condensation |
| Control method | PTP & CP |
| Filling speed | X & Y/Z (mm/sec): 0.1~800/ 500 |
| Interpolation function | 3 axes(suit for 3D requirement) |
| Positioning accuracy | 0.05mm |
| Repetitive positioning accuracy | ±0.03mm |
| Size | L550*W550*Z580mm |
| Jig/Tray | 100pcs/tray |
| Packaging type | Wooden case package |
| Machine structure | Filling ,spout pressing ,outer cap capping |
| Throughput | Can be adjusted manually |
| Application | For cartridges/Dropper bottles/Disposable vape pens/Pods |

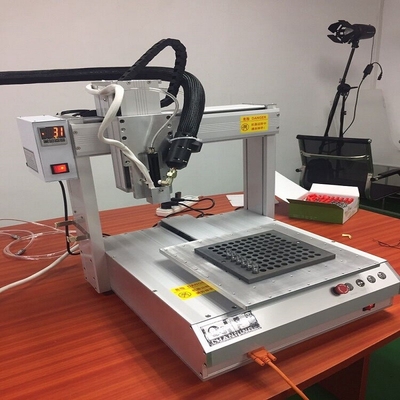

Product pictures:
