Changing makes life changing
 |
| Place of Origin: | Shenzhen,China |
| Brand Name: | Other |
| Certification: | CE,Rohs |
| Model Number: | M1 filling Machine |
| Minimum Order Quantity: | 1sets |
|---|---|
| Price: | 10000sets/week |
| Packaging Details: | Gift box |
| Delivery Time: | 1-2 working days for sample, 3-7 working days for bulk, 8-12 working days for OEM |
| Payment Terms: | Paypal, T/T, Western Union |
| Motor System: | Stepper Motor | JIG/TRAY: | 100pcs/tray |
|---|---|---|---|
| Driven Type: | Electric | Certification: | CE,Rohs |
| High Light: | cartridge filling equipment,automatic filling machine |
||

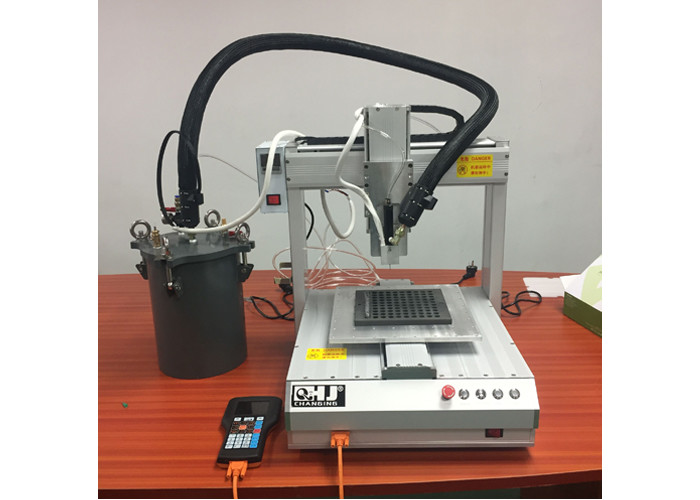

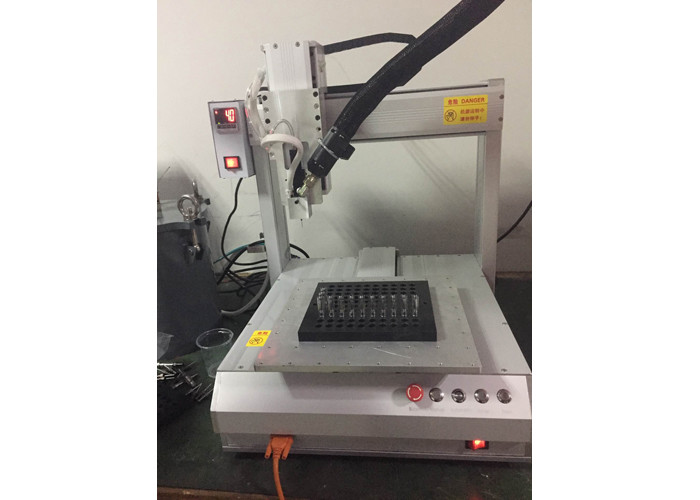

M1 Filling Machine Stepper Motor Automated Electric Machine for CBD Hemp Thick Oil
Features
1. The software has array, horizontal move and rotate operation function.
2. Size, speed spread, dispensing time, time of halting dispensing can be arranged as per needs. With this method, glue exudation is quite stable with no glue leaking and dripping.
3. According to the production process, the working platform can be installed for positioning PIN, sole-plate heating and temperature regulating device.
Specification
| Model | Automatic filling machine |
| Feature | Heating funtion is available (optional) |
| Driven Type | Electric |
| Motor system | Stepper Motor |
| Power Supply | Full voltage AC110 ~ 240V 300W |
| Working Temperature | 5 – 40 °C |
| Machine working presure | 0.2 - 1.0 Pa |
| Working Range X/Y/Z(mm) | X200*Y300*Z400mm |
| I/O signal port | 12 inputs/outputs |
| Working Relative Humidity | 20 – 90% no condensation |
| Control method | PTP & CP |
| Filling Speed | X & Y/Z (mm/sec): 0.1~800/ 500 |
| Interpolation function | 3 axes(suit for 3D requirement) |
| positioning accuracy | 0.05mm |
| Repetitive positioning accuracy | ±0.03mm |
| Size | L550*W550*Z580mm |
| JIG/TRAY | 100pcs/tray |
| Packaging Type | Wooden Case package |
| Machine Structure | Filling ,spout pressing ,outer cap capping |
| Throughput | Can be adjusted manually |
| Application | FOR cartridges/dropper bottles/disposable e cigarette/cartomizer |
Product details
Packing details
Payment
Paypal, Western Union, T/T, Visa, Master Card
Delivery time
1-2 working days for sample order
3-7 working days for bulk order
8-12 working days for OEM order after sample confirmed
After-sales service
(1).Our defective rate is under 2%, if any defective item during warranty time, please send us photo or video, we will check and replace it for you in your next order.
(2).Keep tracking your package until you receive it.
(3) Contact person: Dora
Contact Person: Miss. Cassie xiang
Tel: +8618674520603
Fax: 86-755-3367-0911
