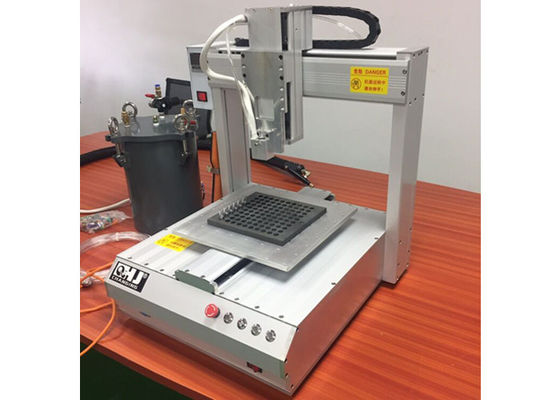

M1 CBD Oil Filling Machine for Hemp Oil High Quality Thick Oil Filling Machine
Features
1. Teach pendent in English interface, easy operation.
2. Dispense points, lines, surface, circles, arc, irregular curves, three axis controllable.
3. The software has array, horizontal move and rotate operation function.
Specification
| Model | Automatic filling machine |
| Feature | Heating funtion is available (optional) |
| Driven Type | Electric |
| Motor system | Stepper Motor |
| Power Supply | Full voltage AC110 ~ 240V 300W |
| Working Temperature | 5 – 40 °C |
| Machine working presure | 0.2 - 1.0 Pa |
| Working Range X/Y/Z(mm) | X200*Y300*Z400mm |
| I/O signal port | 12 inputs/outputs |
| Working Relative Humidity | 20 – 90% no condensation |
| Control method | PTP & CP |
| Filling Speed | X & Y/Z (mm/sec): 0.1~800/ 500 |
| Interpolation function | 3 axes(suit for 3D requirement) |
| positioning accuracy | 0.05mm |
| Repetitive positioning accuracy | ±0.03mm |
| Size | L550*W550*Z580mm |
| JIG/TRAY | 100pcs/tray |
| Packaging Type | Wooden Case package |
| Machine Structure | Filling ,spout pressing ,outer cap capping |
| Throughput | Can be adjusted manually |
| Application | FOR cartridges/dropper bottles/disposable e cigarette/cartomizer |
Product details
Packing details
Payment
Paypal, Western Union, T/T, Visa, Master Card
Delivery time
1-2 working days for sample order
3-7 working days for bulk order
8-12 working days for OEM order after sample confirmed
After-sales service
(1).Our defective rate is under 2%, if any defective item during warranty time, please send us photo or video, we will check and replace it for you in your next order.
(2).Keep tracking your package until you receive it.
(3) Contact person: Dora
